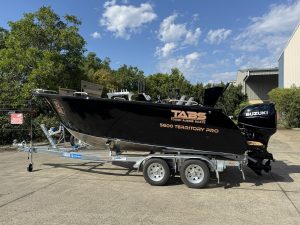

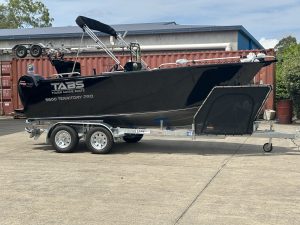

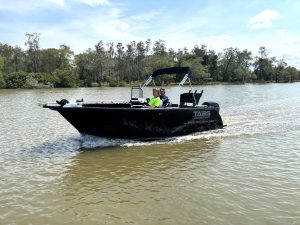

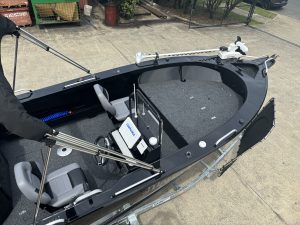

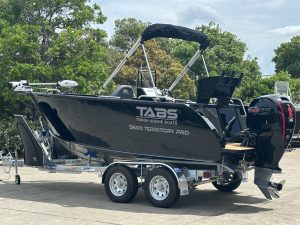

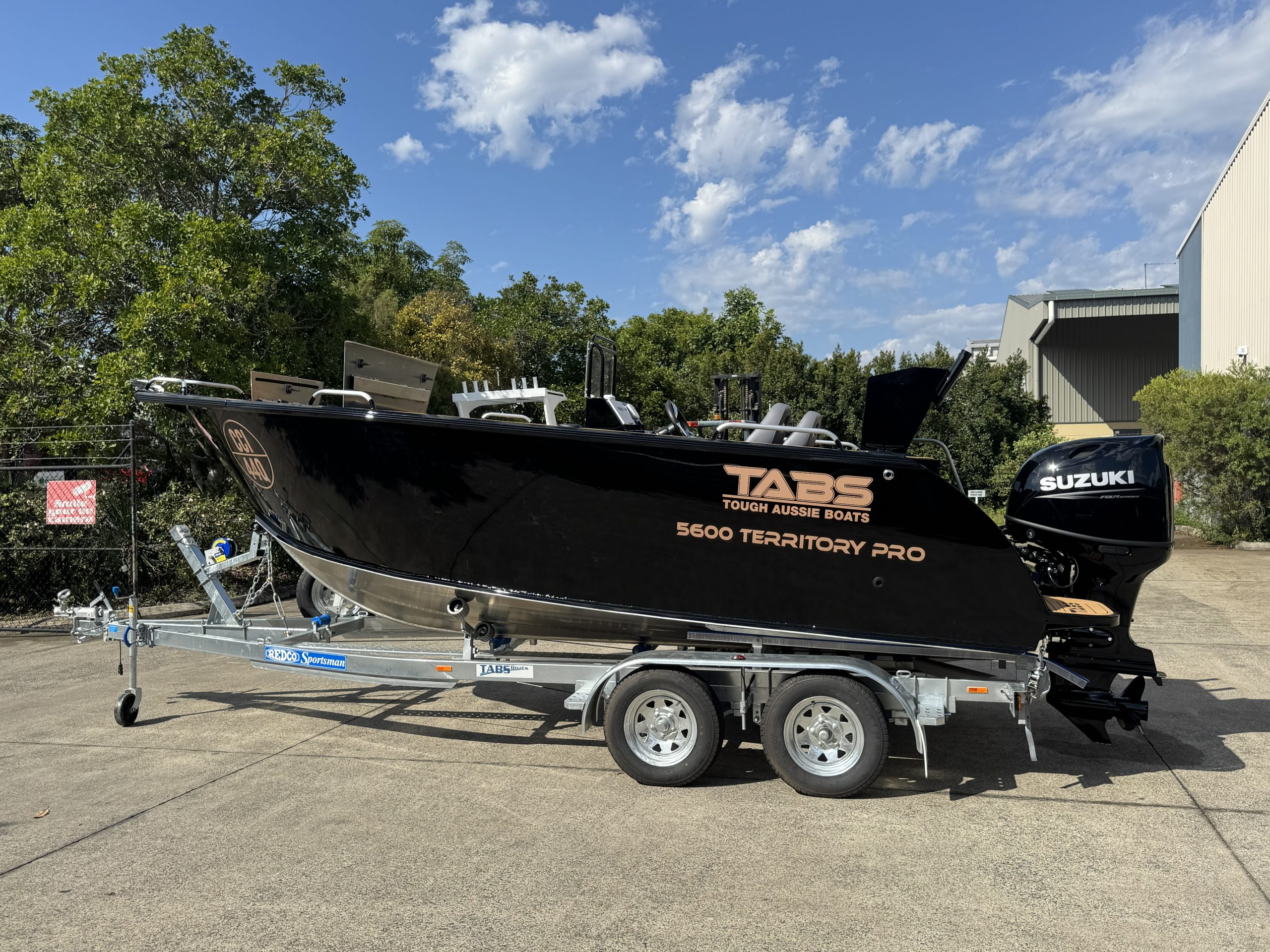

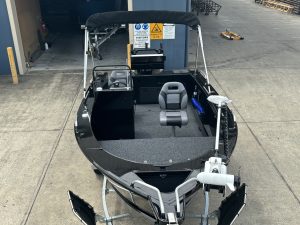

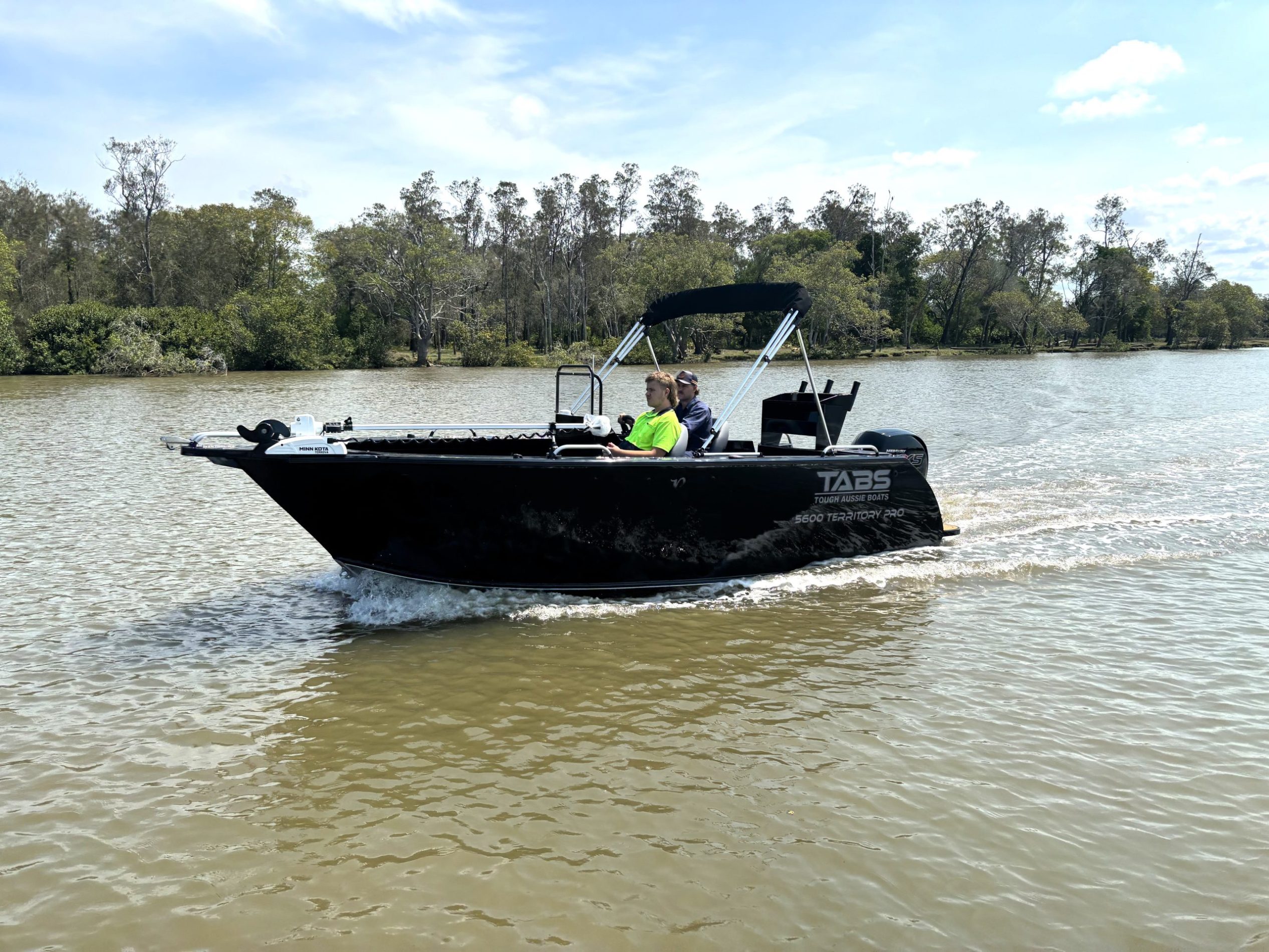

5600 Territory Pro Side Console
The Highlights
- Fully Strung Plate Boat
- Battery Enclosure for 2 x Batteries
- Electric Bow Mount Bracket
- Weld in Rod Holders x 4
- Ally Bait Table w/Storage Tray, Drink Holders & 3 x Rod Holders
- Epirb & Fire Extinguisher Recess in Console
- Flush mount up to a 12″ Sounder in Console
- Ally Live Bait Tank Plumbed
- Swim Platform Portside & Starboard
- Under Step Boarding Ladder S/S
- Built in 85L Esky

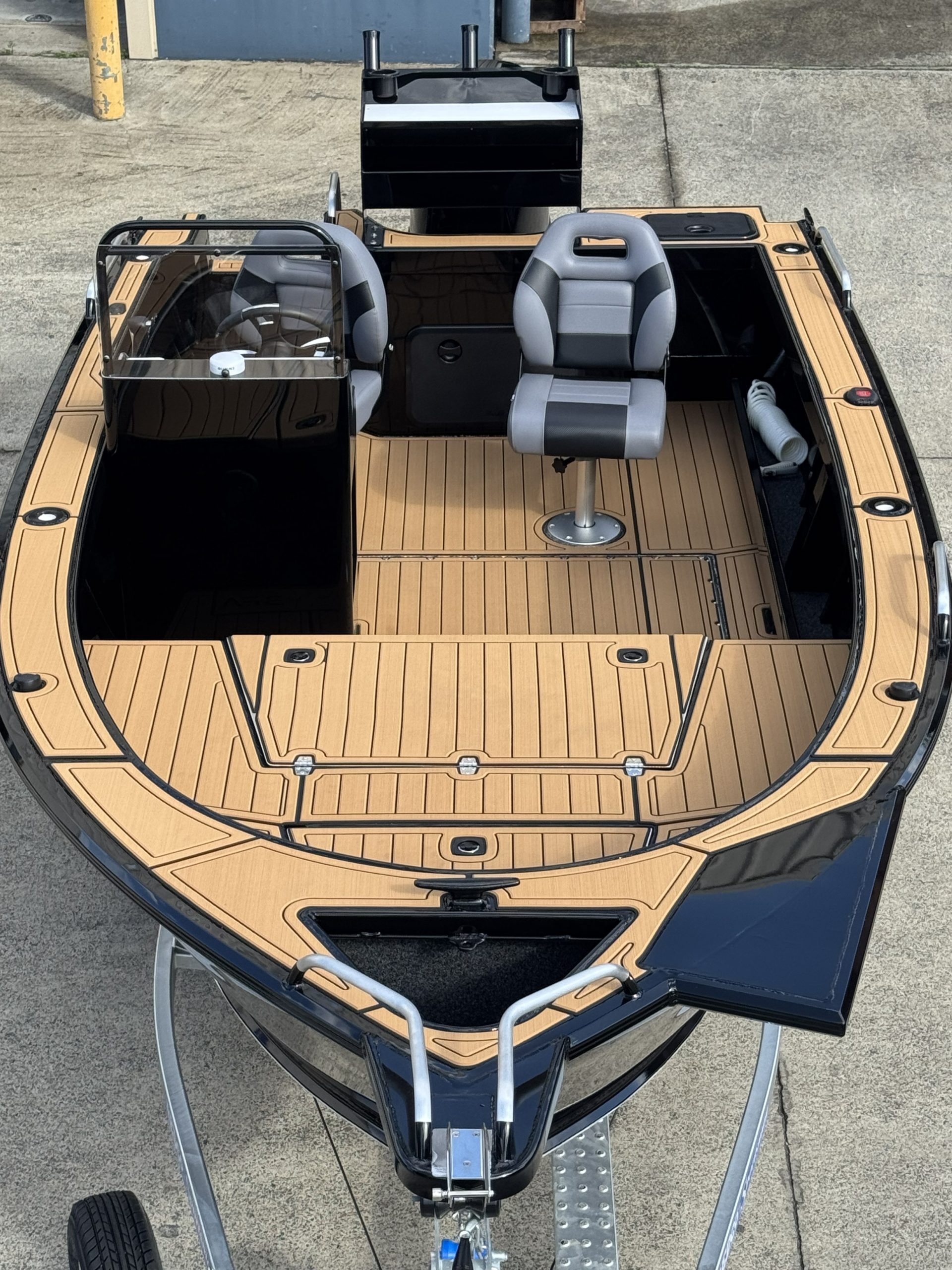

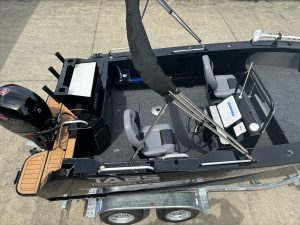

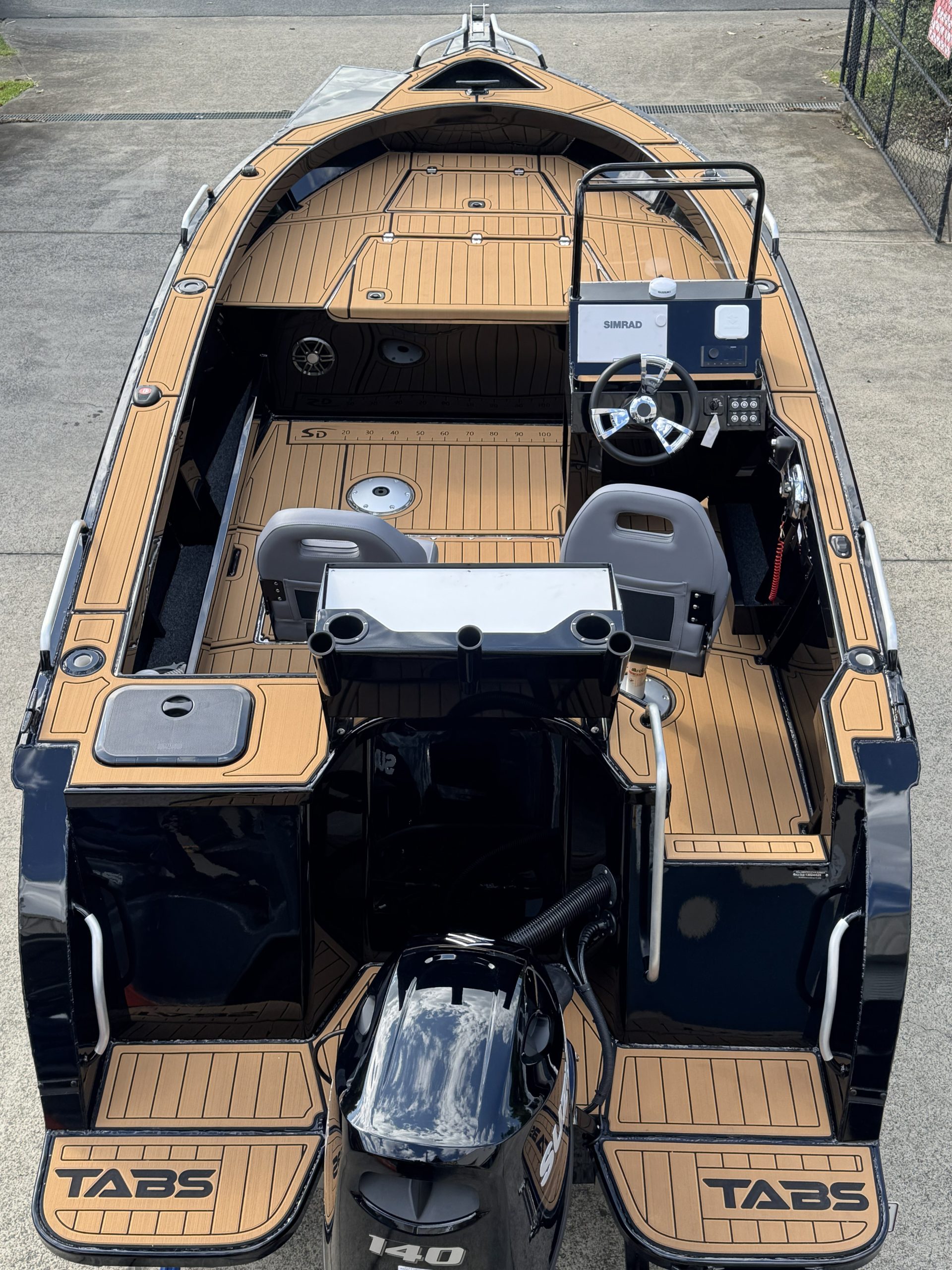

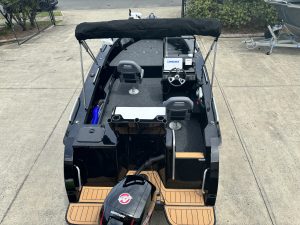

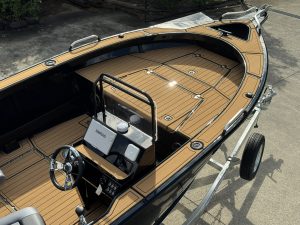

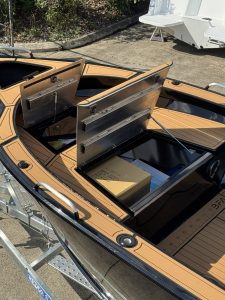

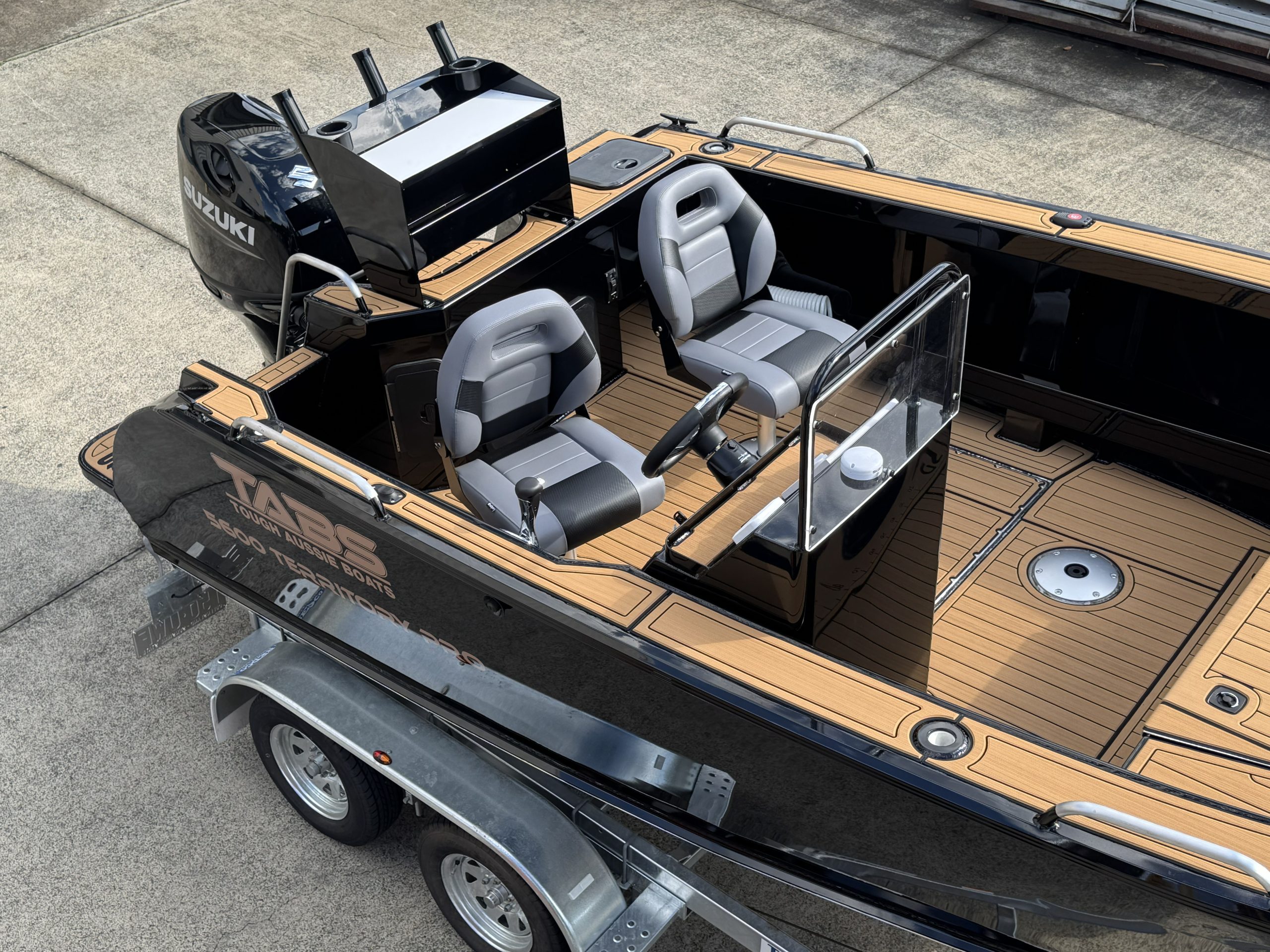

Please note the images may include optional extras and/or modifications.
View all featuresModel Comparison
5100 | 5300 | 5600 | 6000 | |
---|---|---|---|---|
Length Overall (m) | 5.45 | 5.65 | 5.95 | 6.45 |
Beam (mm) (approx) | 2250 | 2300 | 2350 | 2450 |
Material Bottoms 5083 High Tensile | 4mm | 4mm | 4mm | 4mm |
Material Sides 5083 High Tensile | - | - | 4mm | 4mm |
Material Sides 5052 | 3mm | 3mm | - | - |
Fuel Tank Size (approx) | 110L | 110L | 150L | 180L |
Freeboard (approx mm) | 550 | 680 | 700 | 730 |
Deadrise (Fast Planing Hull) | Variable | Variable | Variable | Variable |
Transom | L/S | L/S | L/S | X/L |
Min Horsepower (Hp) | 70 | 75 | 90 | 140 |
Max Horsepower (Hp) | 115 | 140 | 150 | 175 |
Hull Weight (approx Kg) | 540 | 560 | 680 | 720 |
Number of People (up to) | 5 | 5 | 6 | 7 |
Standard Features
5100 | 5300 | 5600 | 6000 | |
---|---|---|---|---|
Ally Live Bait Tank Plumbed with Rule 800GPH Pump | Optional | Optional | ✓ | ✓ |
Live Bait Tank Plumbed with Rule 800GPH Pump | ✓ | ✓ | ||
Walk Thru Transom | ✓ | ✓ | ✓ | ✓ |
Swim Platform Stbd | 300mm | 300mm | 300mm | 400mm |
Swim Platform Portside | 300mm | 300mm | 300mm | 400mm |
Under Step S/S Boarding Ladder (Stbd) | ✓ | ✓ | ✓ | ✓ |
Side Pockets x 2 | ✓ | ✓ | ✓ | ✓ |
Battery Enclosure for 2 x Batteries w/1 Hatch | ✓ | ✓ | ✓ | ✓ |
Battery Isolator Recess with Hatch | ✓ | ✓ | ✓ | ✓ |
Electric Bow Mount Bracket | ✓ | ✓ | ✓ | ✓ |
Esky in Casting Deck | 70L | 85L | 85L | 85L |
Casting Deck 1500mm (approx) w/2 Hatches | ✓ | ✓ | ✓ | ✓ |
Side Console w/Screen, Grab Rail, 2 x Drink Holders & Dash surround | ✓ | ✓ | ✓ | ✓ |
Epirb & Fire Extinguisher Recess in Console | ✓ | ✓ | ✓ | ✓ |
Aluminium Weld in Rod Holders | 4 | 4 | 4 | 4 |
Aluminium Bait Table w/Storage Tray, Drink Holders & 3 x Rod Holders | Optional | Optional | ✓ | ✓ |
Cleats x 3 | 3 | 3 | 3 | 3 |
Led Nav & Stern Lights | ✓ | ✓ | ✓ | ✓ |
Bilge & Bait Pumps | ✓ | ✓ | ✓ | ✓ |
6 Gang Switch Panel | ✓ | ✓ | ✓ | ✓ |
Isolator Switch | ✓ | ✓ | ✓ | ✓ |
Hydraulic Steering Seastar | ✓ | ✓ | ✓ | ✓ |
Large Carpeted Anchor Well with Drain | ✓ | ✓ | ✓ | ✓ |
Carpeted Hardwood Floor | ✓ | ✓ | ✓ | ✓ |
Bow Sprit & Bow Roller | ✓ | ✓ | ✓ | ✓ |
Bow & Side Rails (Low) | 25mm | 25mm | 32mm | 32mm |
Transom Rails x 3 | 25mm | 25mm | 25mm | 25mm |
Raised Sheerline | ✓ | ✓ | ✓ | ✓ |
Painted White w/Stripes | ✓ | ✓ | ✓ | ✓ |
Reverse Chines | ✓ | ✓ | ✓ | ✓ |
Seat Positions | 4 | 4 | 4 | 4 |
Seats Deluxe (Folding) | 2 | 2 | 2 | 2 |
Drivers Seat Slide | ✓ | ✓ | ✓ | ✓ |
Spray Chines Full Length | ✓ | ✓ | ✓ | ✓ |
Transducer Brackets | 2 | 2 | 2 | 2 |
Transom Tie Down Lugs | 2 | 2 | 2 | 2 |
Transom Deck Tread | ✓ | ✓ | ✓ | ✓ |
