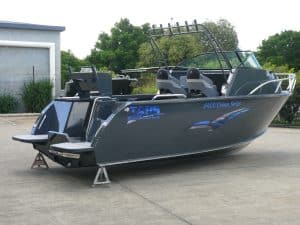

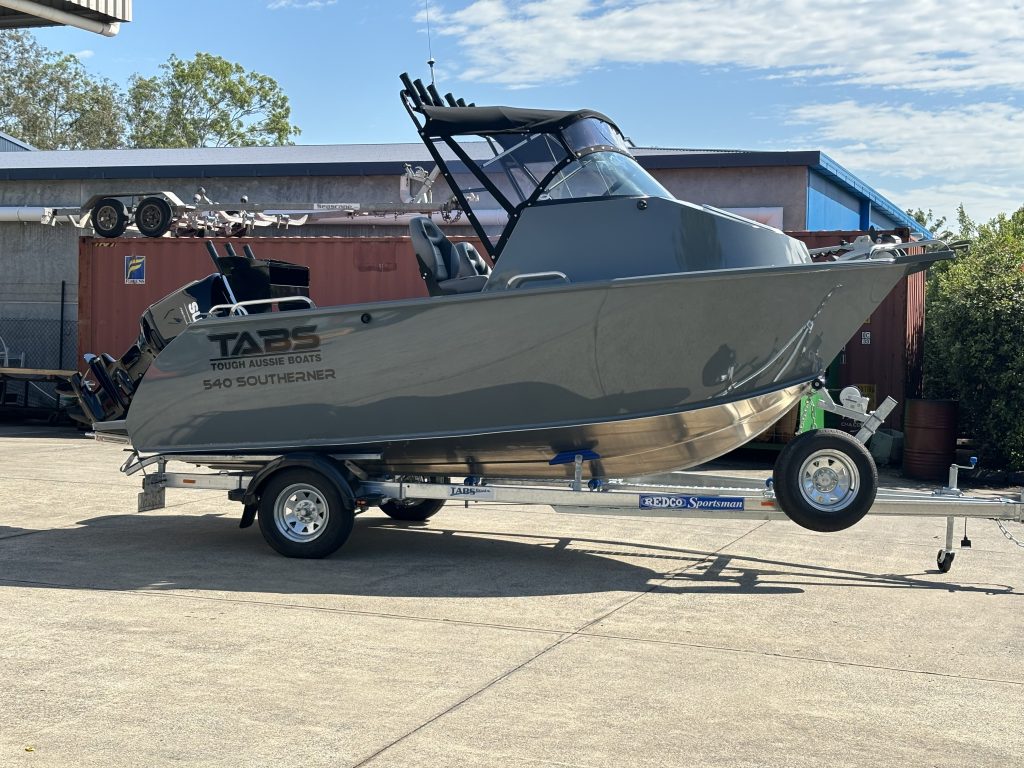

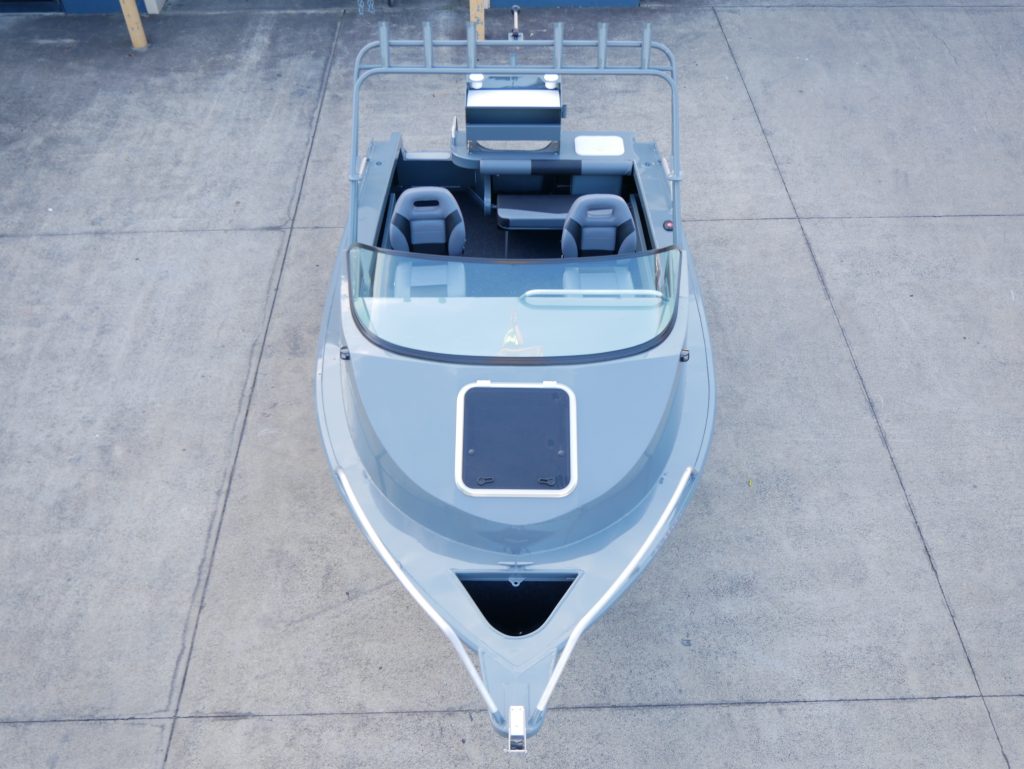

530 Southerner

The Highlights

Please note the images may include optional extras and/or modifications

	530	560	600
Length Overall (m)	5.75	6.15	6.45
Beam (mm) (approx)	2350	2350	2450
Material Bottoms 5083 High Tensile	4mm	4mm	5mm
Material Sides 5052	3mm	3mm	3mm
Fuel Tank Size (approx)	110L	110L	150L
Freeboard (approx mm)	680	680	700
Deadrise (Fast Planing Hull)	Variable	Variable	Variable
Transom	L/S	L/S	X/L
Min Horsepower (Hp)	70	90	115
Max Horsepower (Hp)	115	140	150
Hull Weight (approx Kg)	585	625	739
Number of People (up to)	6	6	7

	530	560	600
Walk Thru Transom	✓	✓	✓
Swim Platform Stbd	300mm	300mm	300mm
Under Step S/S Boarding Ladder (Stbd)	✓	✓	✓
Side Pockets	2	2	2
Seats Deluxe Folding	2	2	2

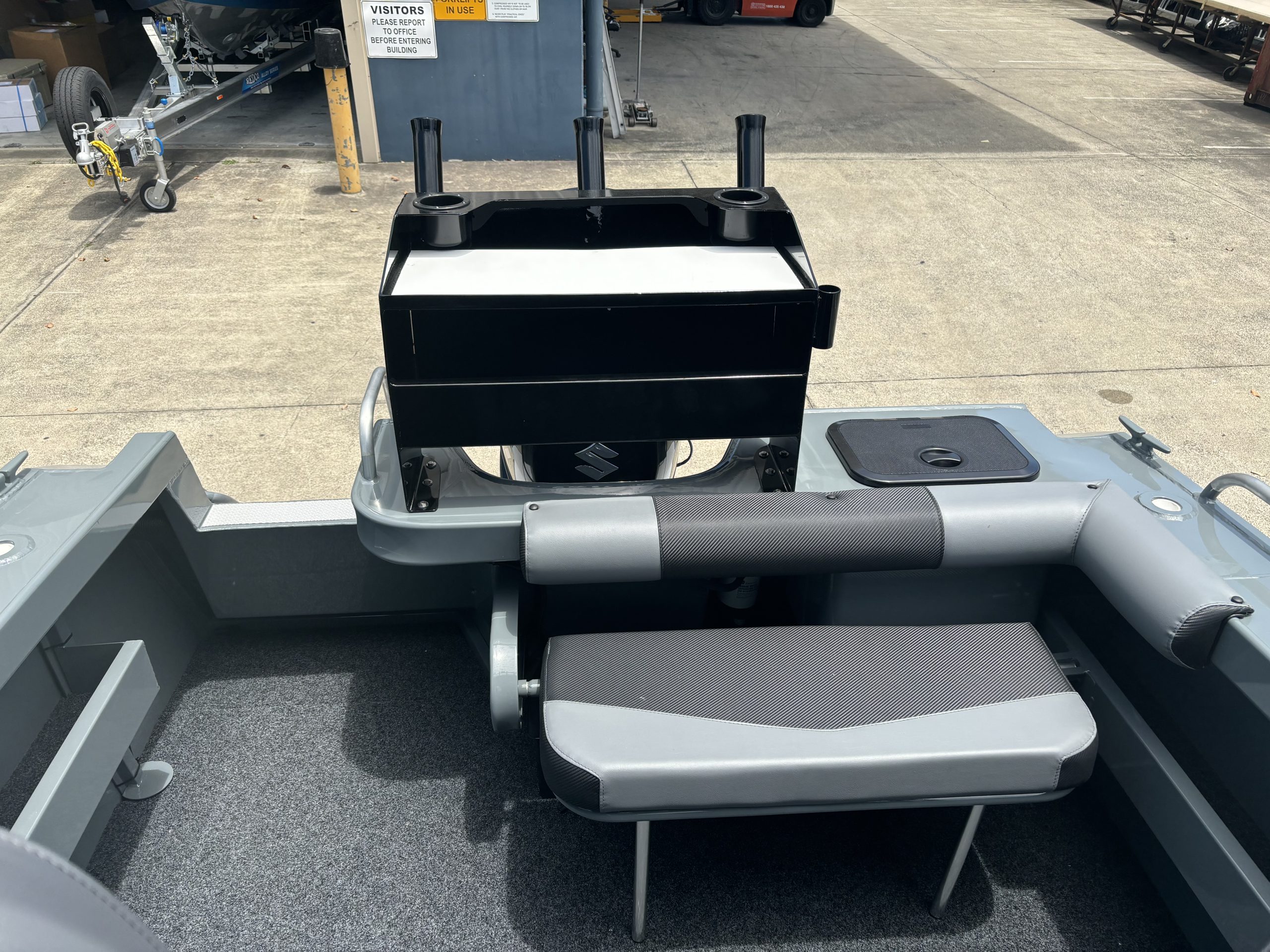

Rear Folding Lounge & Backrest	✓	✓	✓
1 Piece Windscreen	✓	✓	✓
Aluminium Weld in Rod Holders	4	4	4
Cleats	3	3	3
LED Nav & Stern Lights	✓	✓	✓
Bilge Pump	✓	✓	✓
6 Gang Switch Panel	✓	✓	✓
Isolator Switch	✓	✓	✓
Hydraulic Steering Seastar	✓	✓	✓

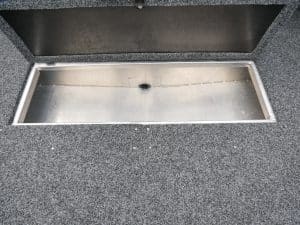

Large Carpeted Anchor Well with Drain	✓	✓	✓
Carpeted Hardwood Floor	✓	✓	✓
Bow Sprit & Bow Roller	✓	✓	✓
Bow Rails & Side Rails	25mm	32mm	32mm
Transom Rails x 3	25mm	25mm	25mm
Painted White w/Stripes	✓	✓	✓
Reverse Chines	✓	✓	✓
Spray Chines Full Length	✓	✓	✓
Transducer Brackets	2	2	2
Transom Tie Down Lugs	2	2	2
Transom Deck Tread	✓	✓	✓
