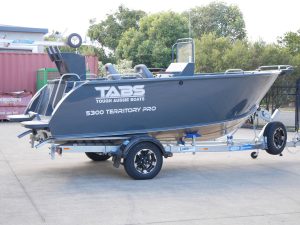

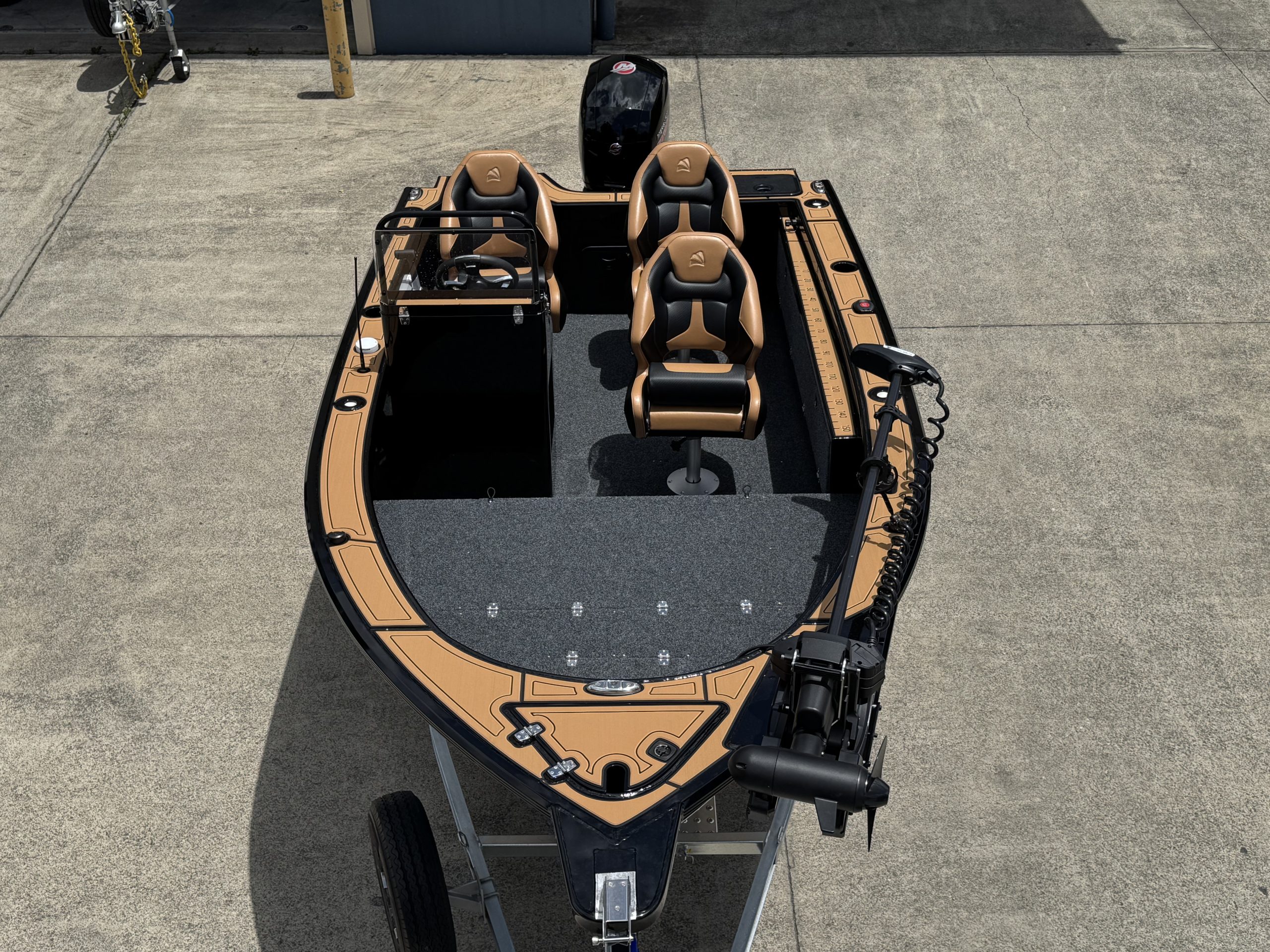

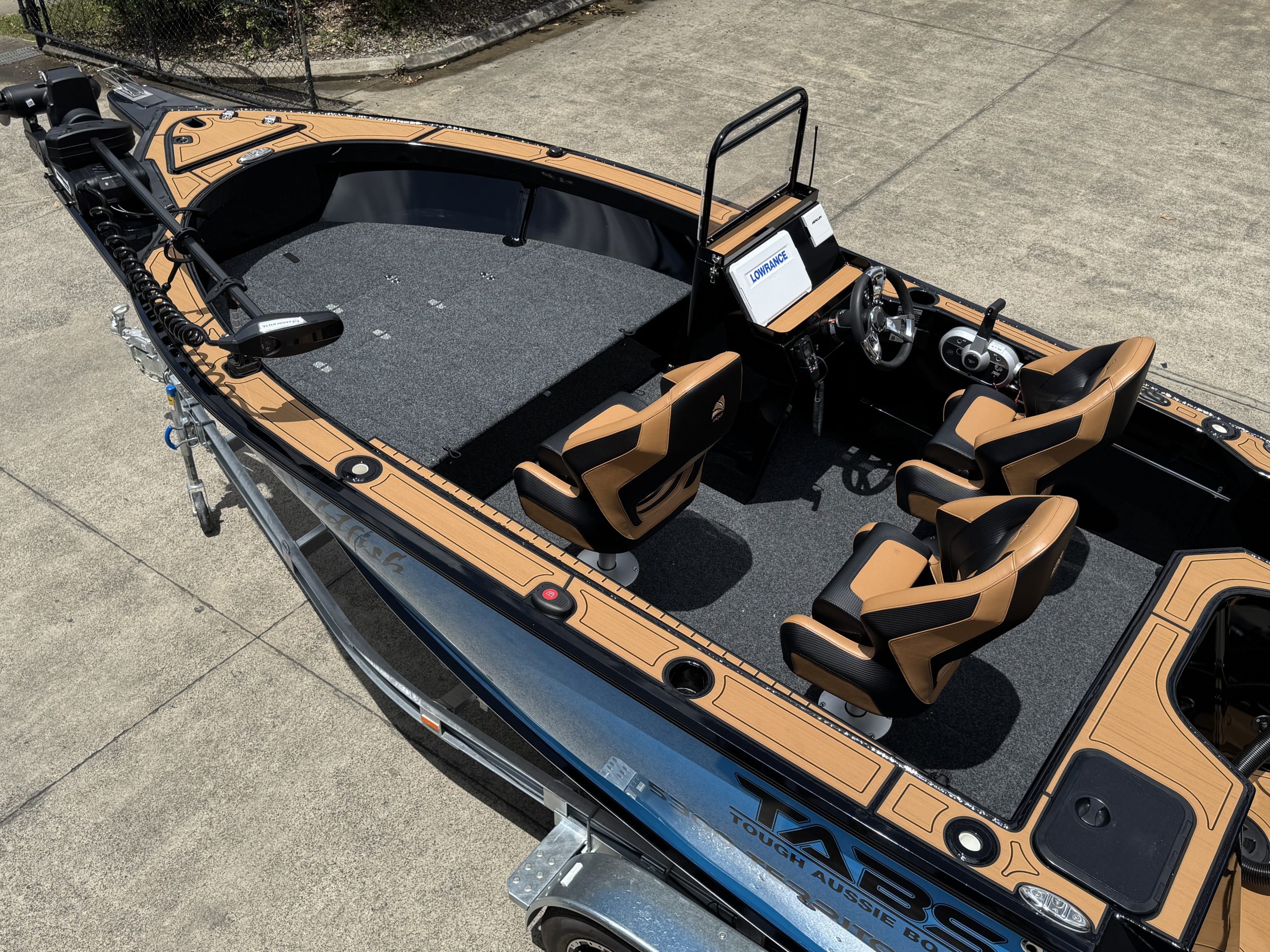

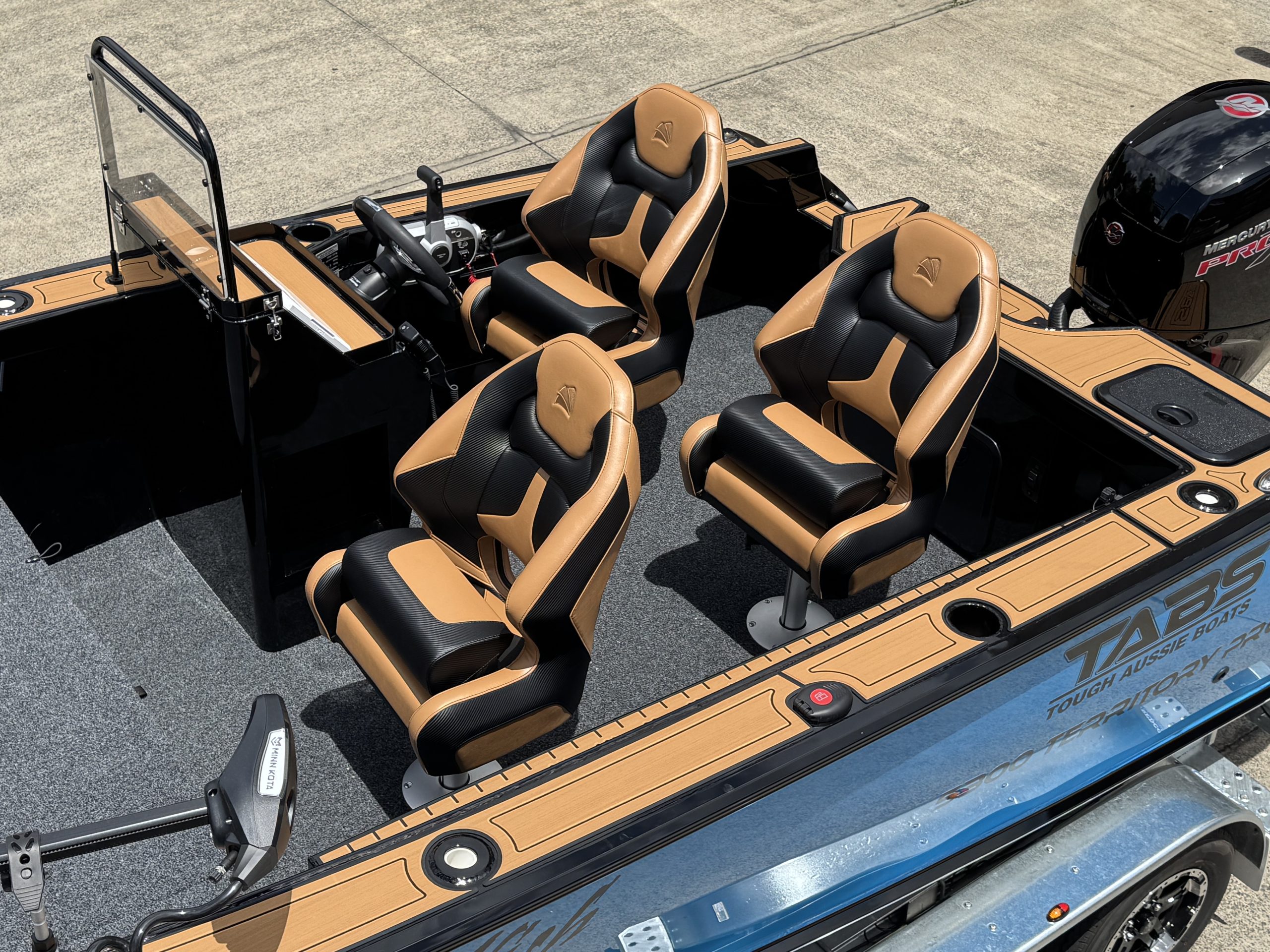

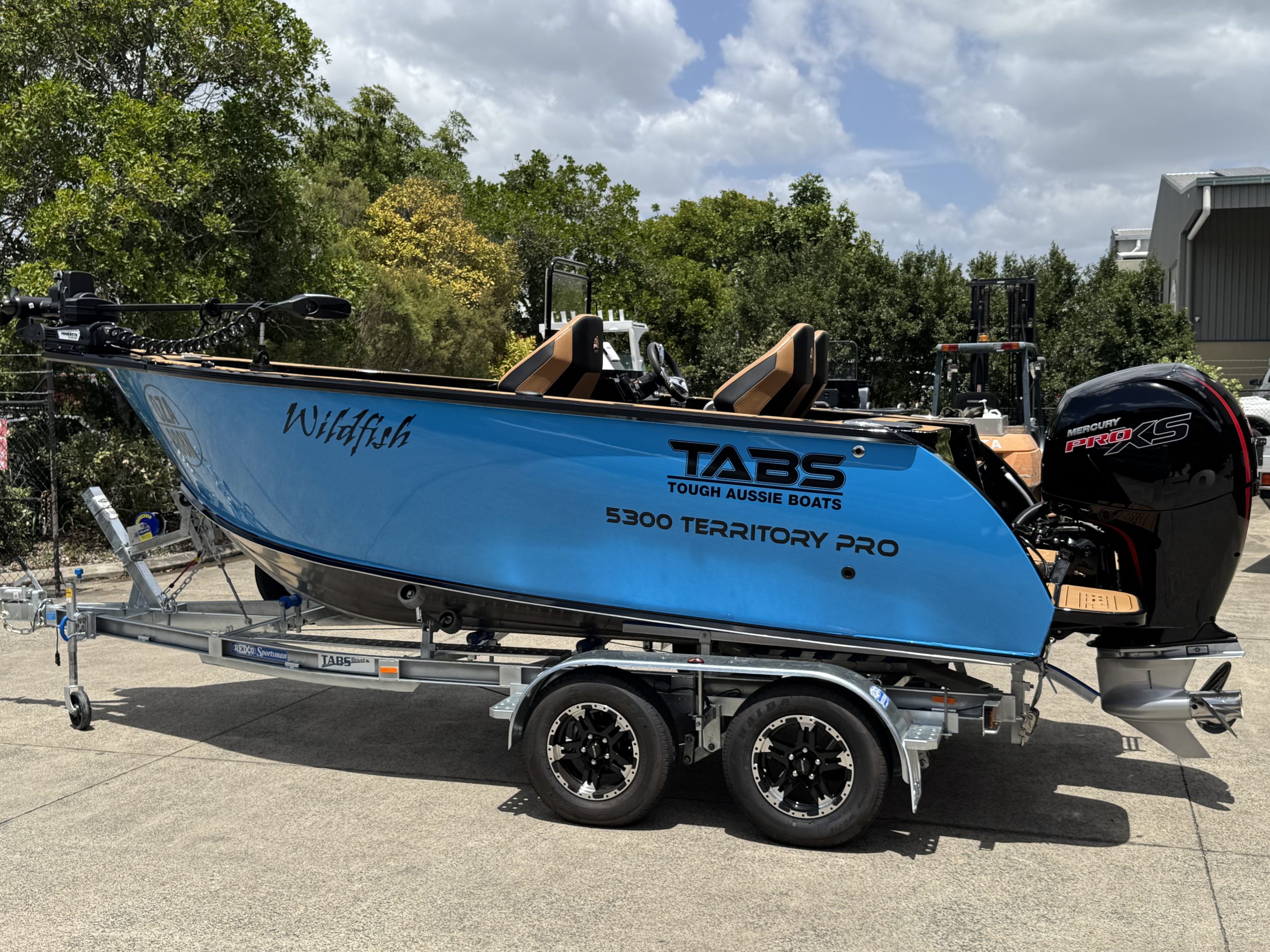

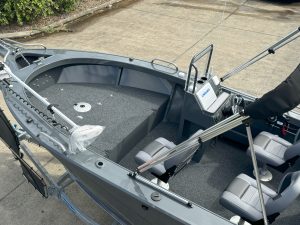

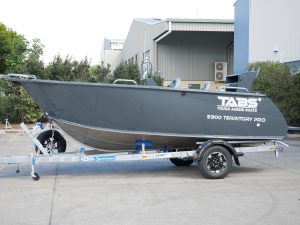

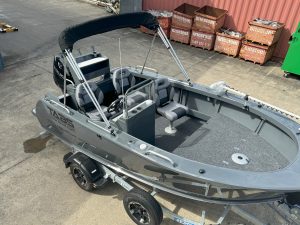

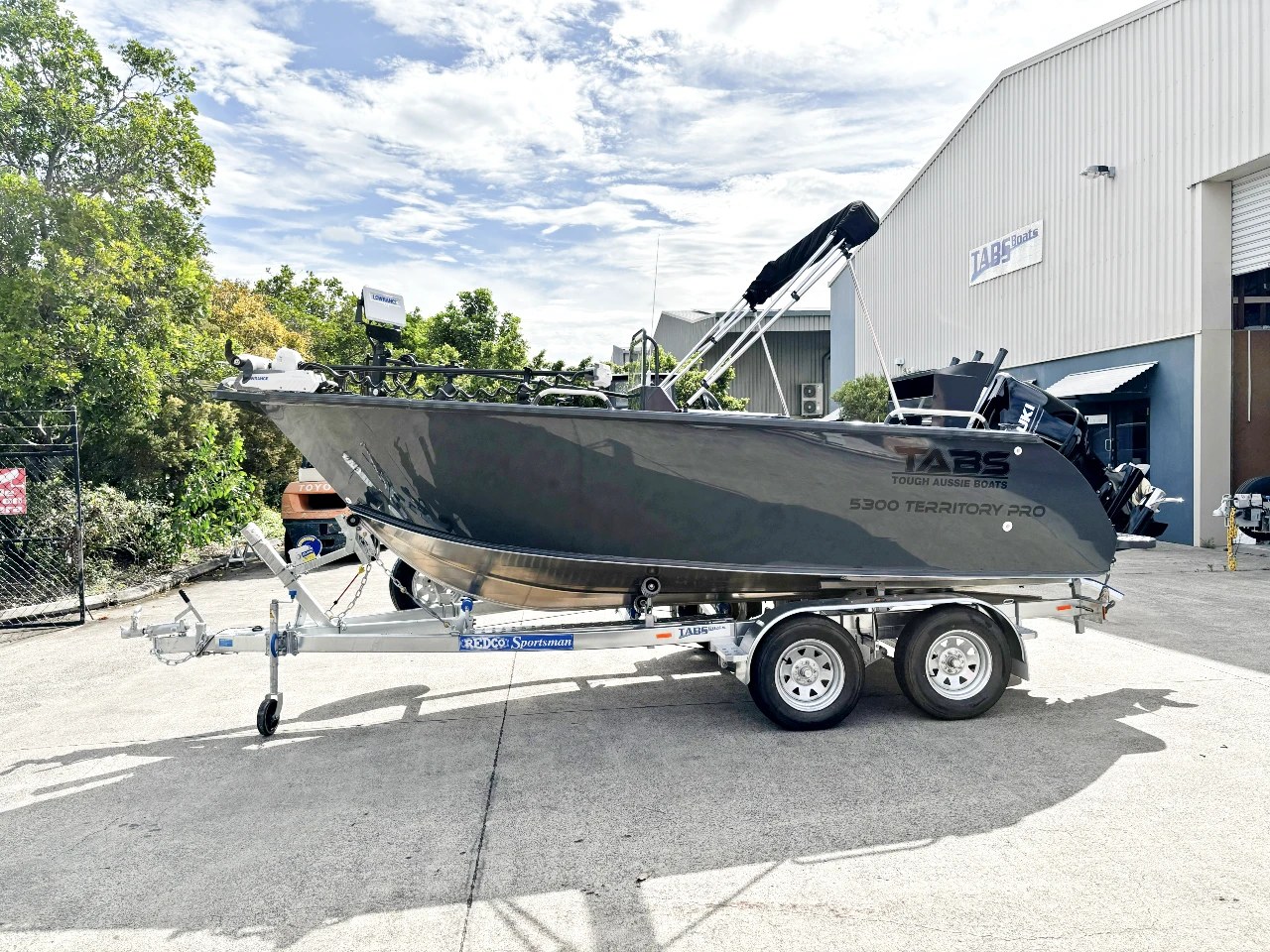

5300 Territory Pro Side Console
The Highlights
- Fully Strung Plate Boat
- Battery Enclosure for 2 x Batteries
- Electric Bow Mount Bracket
- Weld in Rod Holders x 4
- Epirb & Fire Extinguisher Recess in Console
- Able to flush mount up to a 12″ Sounder in Console
- Live Bait Tank Plumbed
- Swim Platform Portside & Starboard
- Under Step Boarding Ladder S/S

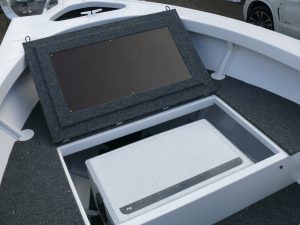

- Built in 85L Esky

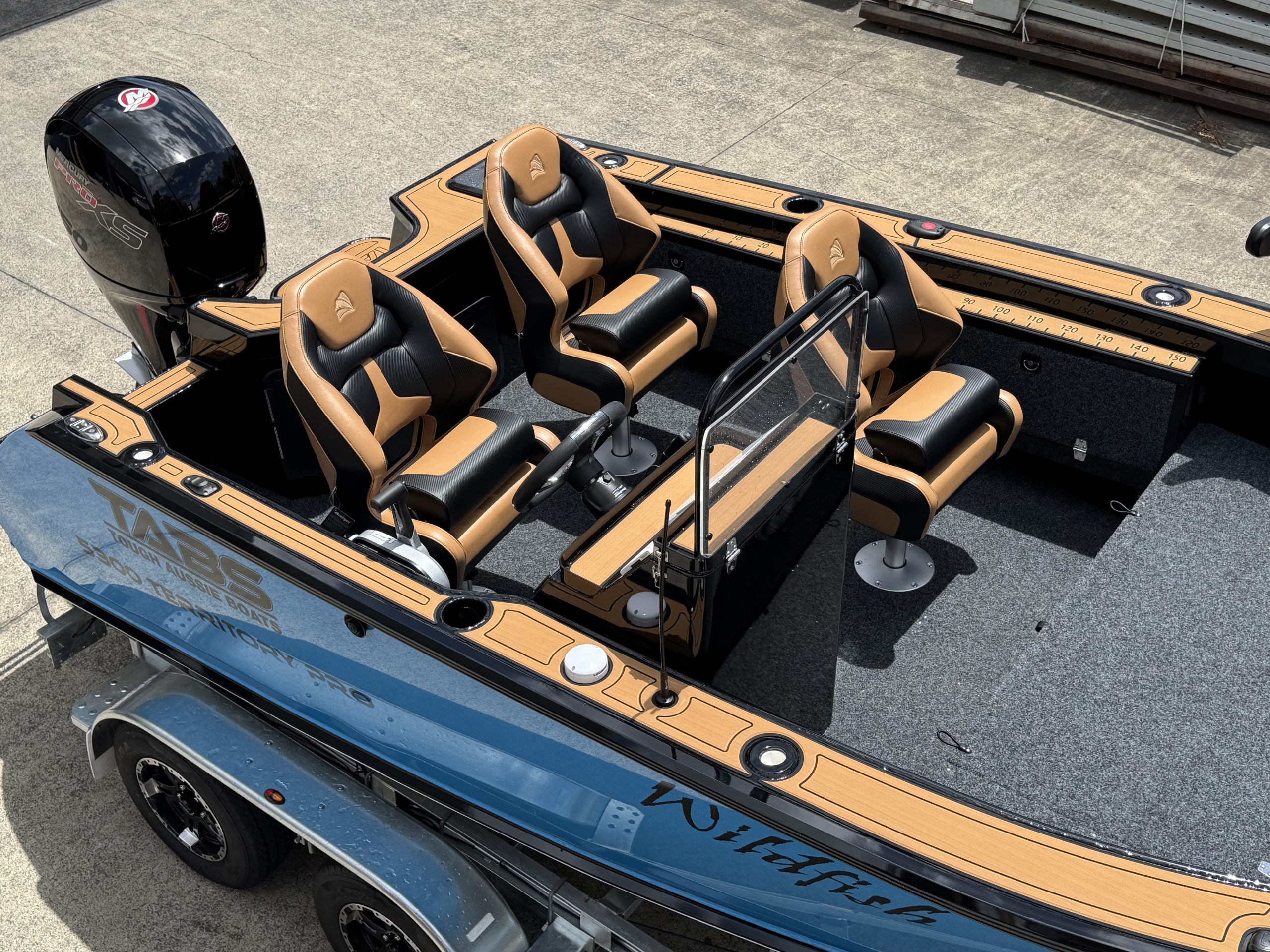

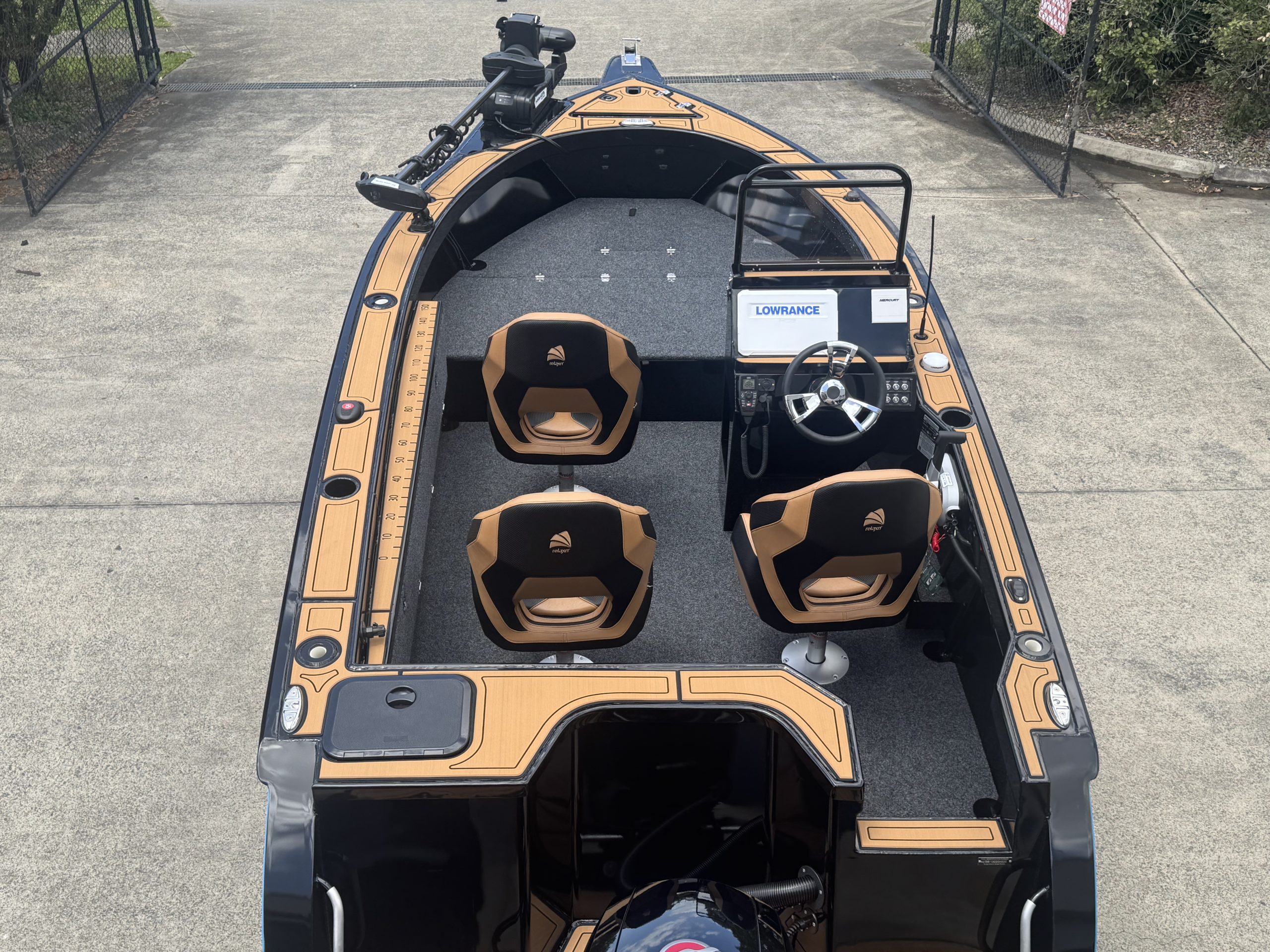

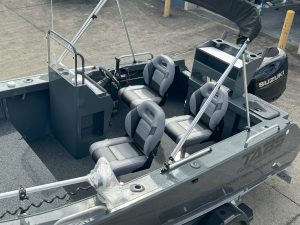

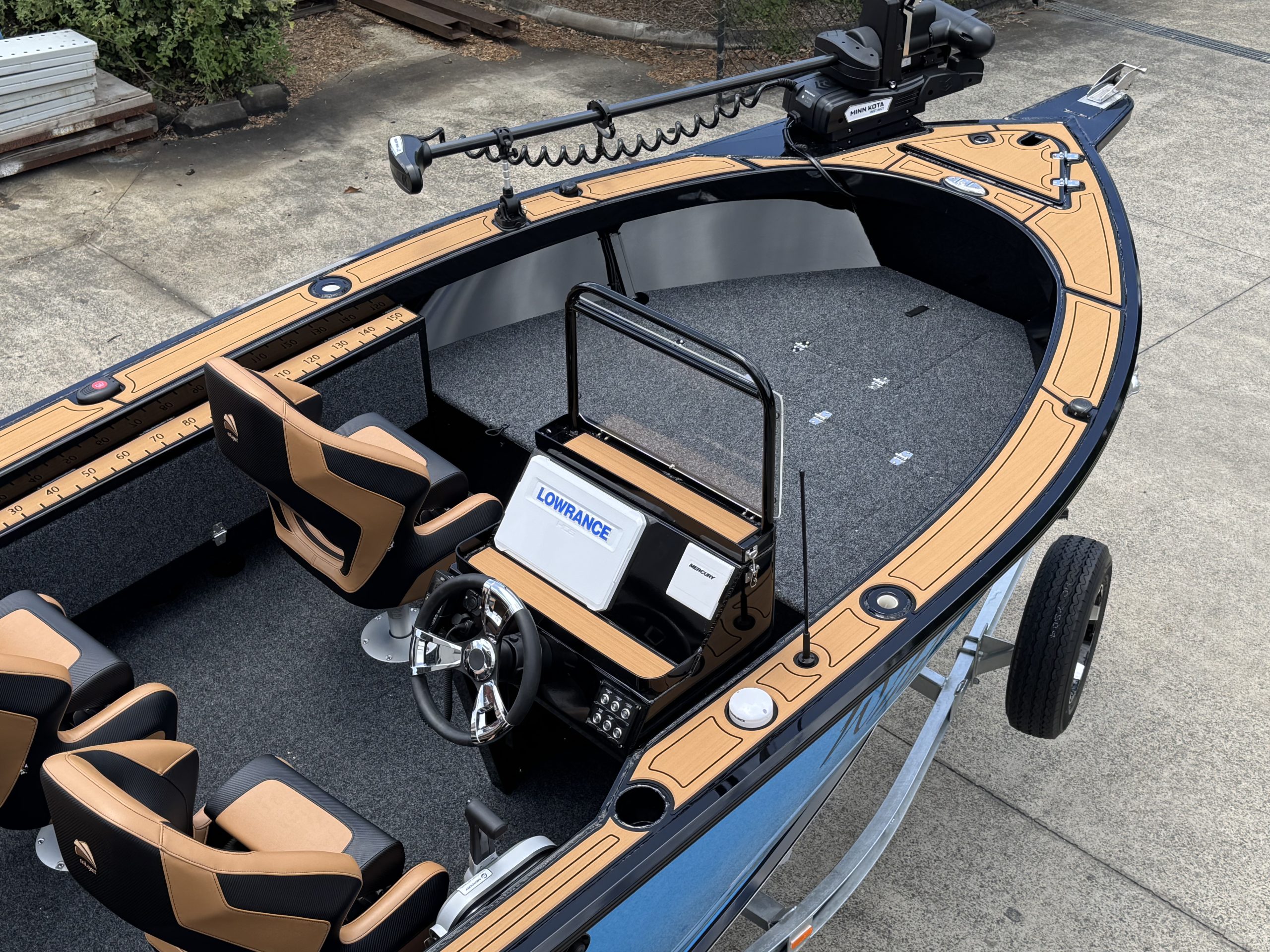

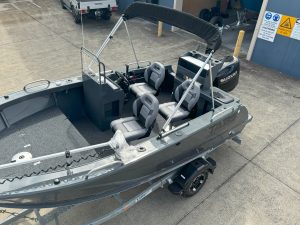

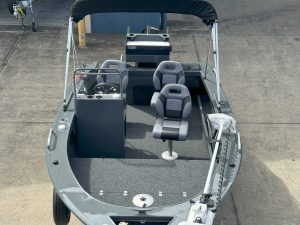

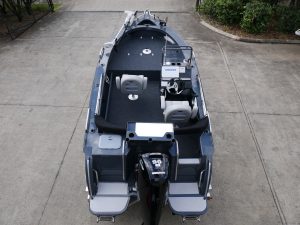

Please note the images may include optional extras and/or modifications.
View all features
Model Comparison
| 5100 | 5300 | 5600 | 6000 | |
|---|---|---|---|---|
| Length Overall (m) | 5.45 | 5.65 | 5.95 | 6.45 |
| Beam (mm) (approx) | 2250 | 2300 | 2350 | 2450 |
| Material Bottoms 5083 High Tensile | 4mm | 4mm | 4mm | 4mm |
| Material Sides 5083 High Tensile | - | - | 4mm | 4mm |
| Material Sides 5052 | 3mm | 3mm | - | - |
| Fuel Tank Size (approx) | 110L | 110L | 150L | 180L |
| Freeboard (approx mm) | 550 | 680 | 700 | 730 |
| Deadrise (Fast Planing Hull) | Variable | Variable | Variable | Variable |
| Transom | L/S | L/S | L/S | X/L |
| Min Horsepower (Hp) | 70 | 75 | 90 | 140 |
| Max Horsepower (Hp) | 115 | 140 | 150 | 175 |
| Hull Weight (approx Kg) | 540 | 560 | 680 | 720 |
| Number of People (up to) | 5 | 5 | 6 | 7 |
Standard Features
| 5100 | 5300 | 5600 | 6000 | |
|---|---|---|---|---|
| Ally Live Bait Tank Plumbed with Rule 800GPH Pump | Optional | Optional | ✓ | ✓ |
| Live Bait Tank Plumbed with Rule 800GPH Pump | ✓ | ✓ | ||
| Walk Thru Transom | ✓ | ✓ | ✓ | ✓ |
| Swim Platform Stbd | 300mm | 300mm | 300mm | 400mm |
| Swim Platform Portside | 300mm | 300mm | 300mm | 400mm |
| Under Step S/S Boarding Ladder (Stbd) | ✓ | ✓ | ✓ | ✓ |
| Side Pockets x 2 | ✓ | ✓ | ✓ | ✓ |
| Battery Enclosure for 2 x Batteries w/1 Hatch | ✓ | ✓ | ✓ | ✓ |
| Battery Isolator Recess with Hatch | ✓ | ✓ | ✓ | ✓ |
| Electric Bow Mount Bracket | ✓ | ✓ | ✓ | ✓ |
| Esky in Casting Deck | 70L | 85L | 85L | 85L |
| Casting Deck 1500mm (approx) w/2 Hatches | ✓ | ✓ | ✓ | ✓ |
| Side Console w/Screen, Grab Rail, 2 x Drink Holders & Dash surround | ✓ | ✓ | ✓ | ✓ |
| Epirb & Fire Extinguisher Recess in Console | ✓ | ✓ | ✓ | ✓ |
| Aluminium Weld in Rod Holders | 4 | 4 | 4 | 4 |
| Aluminium Bait Table w/Storage Tray, Drink Holders & 3 x Rod Holders | Optional | Optional | ✓ | ✓ |
| Cleats x 3 | 3 | 3 | 3 | 3 |
| Led Nav & Stern Lights | ✓ | ✓ | ✓ | ✓ |
| Bilge & Bait Pumps | ✓ | ✓ | ✓ | ✓ |
| 6 Gang Switch Panel | ✓ | ✓ | ✓ | ✓ |
| Isolator Switch | ✓ | ✓ | ✓ | ✓ |
| Hydraulic Steering Seastar | ✓ | ✓ | ✓ | ✓ |
| Large Carpeted Anchor Well with Drain | ✓ | ✓ | ✓ | ✓ |
| Carpeted Hardwood Floor | ✓ | ✓ | ✓ | ✓ |
| Bow Sprit & Bow Roller | ✓ | ✓ | ✓ | ✓ |
| Bow & Side Rails (Low) | 25mm | 25mm | 32mm | 32mm |
| Transom Rails x 3 | 25mm | 25mm | 25mm | 25mm |
| Raised Sheerline | ✓ | ✓ | ✓ | ✓ |
| Painted White w/Stripes | ✓ | ✓ | ✓ | ✓ |
| Reverse Chines | ✓ | ✓ | ✓ | ✓ |
| Seat Positions | 4 | 4 | 4 | 4 |
| Seats Deluxe (Folding) | 2 | 2 | 2 | 2 |
| Drivers Seat Slide | ✓ | ✓ | ✓ | ✓ |
| Spray Chines Full Length | ✓ | ✓ | ✓ | ✓ |
| Transducer Brackets | 2 | 2 | 2 | 2 |
| Transom Tie Down Lugs | 2 | 2 | 2 | 2 |
| Transom Deck Tread | ✓ | ✓ | ✓ | ✓ |
Optional Extras
VHF Radio
Lowrance Sounder
Simrad Sounder
Territory Pro X Upgrade to Bow Rider Front Seating with Cushions
Paint 2 Tone Upgrade
Kill Tank Plumbed
Deck Wash System
Aluminium Cockpit Floor w/Scuppers includes 4mm Upgraded Sides
Upgrade to 5mm 5083 Material Bottoms

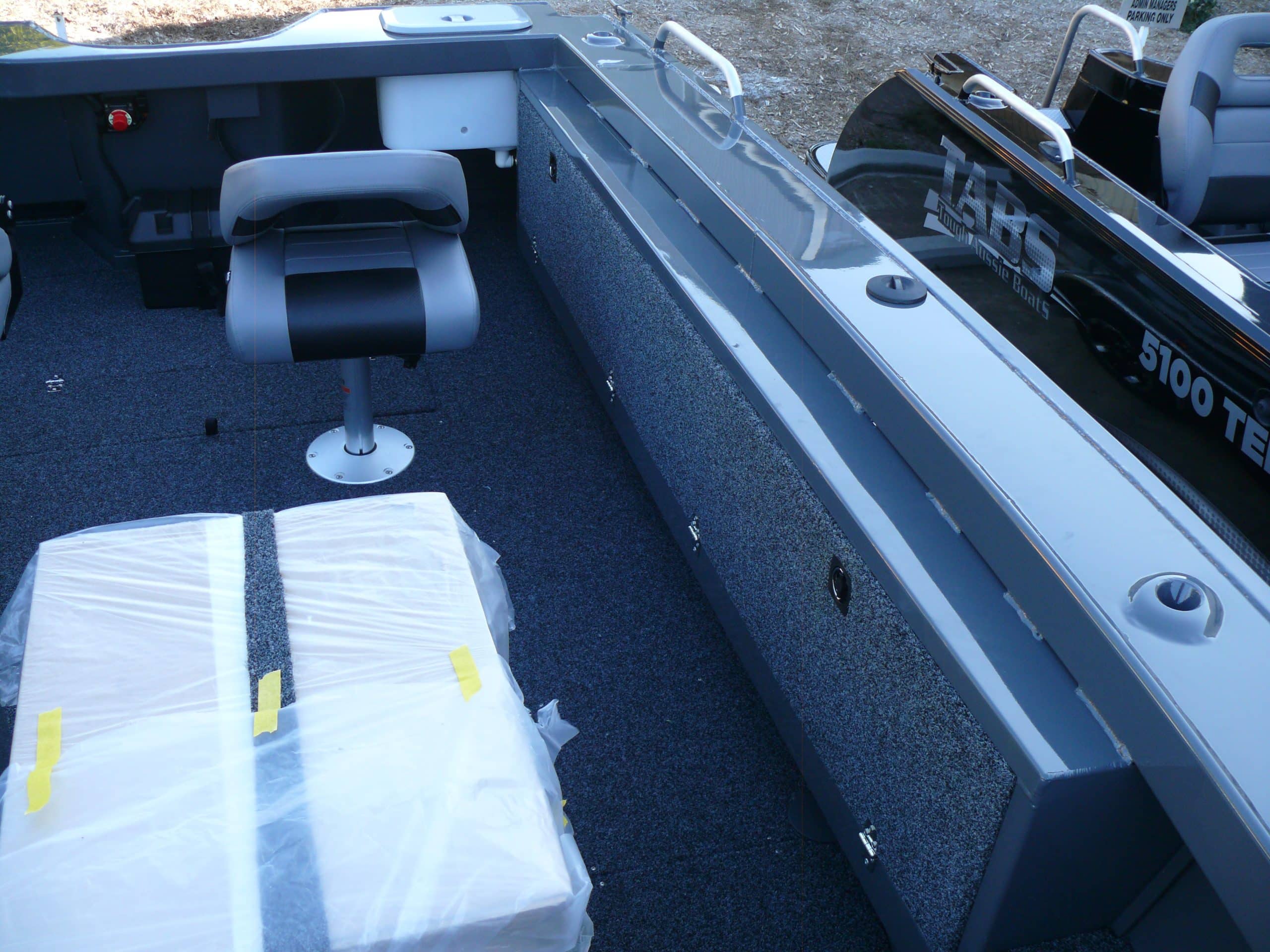

Rod Locker Side Mount
Aluminium Bait Table w/Storage Tray
