5300 Territory Pro Centre Console
The Highlights
- Fully Strung Plate Boat
- Battery Enclosure for 2 x Batteries
- Electric Bow Mount Bracket
- Folding 2 Piece Centre Console 600mm
- or Fixed Console from 740mm with Epirb & Fire Extinguisher Recess
- Able to flush mount up to a 16″ Sounder in Fixed Console
- Weld in Rod Holders x 4
- Live Bait Tank Plumbed
- Swim Platform Portside & Starboard
- Under Step Boarding Ladder S/S
- Built in 85L Esky

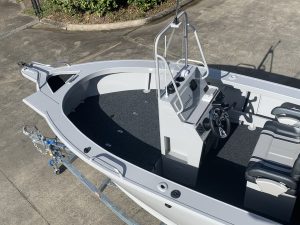

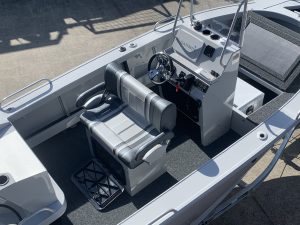

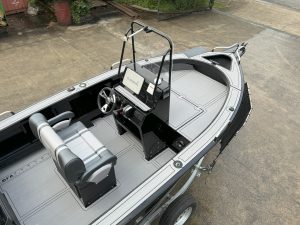

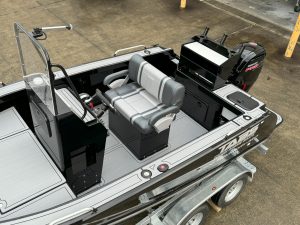

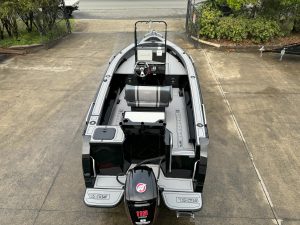

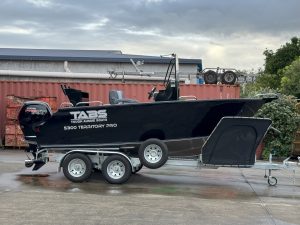

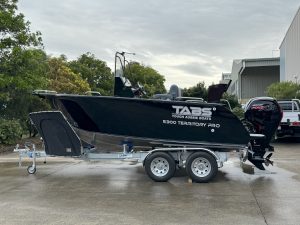

Please note the images may include optional extras and/or modifications.
View all features
Model Comparison
| 5300 | 5600 | 6000 | 6400 | 6700 | 7100 | |
|---|---|---|---|---|---|---|
| Length Overall (m) | 5.65 | 5.95 | 6.45 | 6.85 | 7.15 | 7.55 |
| Beam (mm) (approx) | 2300 | 2350 | 2450 | 2500 | 2500 | 2500 |
| Material Bottoms 5083 High Tensile | 4mm | 4mm | 4mm | 5mm | 5mm | 5mm |
| Material Sides 5083 High Tensile | - | 4mm | 4mm | 4mm | 4mm | 4mm |
| Material Sides 5052 | 3mm | - | - | - | - | - |
| Fuel Tank Size (approx) | 110L | 150L | 180L | 210L | 210L | 210L |
| Freeboard (approx mm) | 680 | 700 | 730 | 750 | 750 | 750 |
| Deadrise (Fast Planing Hull) | Variable | Variable | Variable | Variable | Variable | Variable |
| Transom | L/S | L/S | X/L | X/L | X/L | X/L |
| Min Horsepower (Hp) | 75 | 115 | 140 | 150 | 175 | 225 |
| Max Horsepower (Hp) | 140 | 150 | 175 | 200 | 225 | 300 |
| Hull Weight (approx Kg) | 625 | 710 | 810 | 1120 | 1120 | |
| Number of People (up to) | 5 | 6 | 7 | 7 | 7 | 7 |
Standard Features
| 5300 | 5600 | 6000 | 6400 | 6700 | 7100 | |
|---|---|---|---|---|---|---|
| Ally Live Bait Tank Plumbed with Rule 800GPH Pump | Optional | ✓ | ✓ | ✓ | ✓ | ✓ |
| Live Bait Tank Plumbed with Rule 800GPH Pump | ✓ | |||||
| Walk Thru Transom | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Swim Platform Stbd | 300mm | 300mm | 400mm | 400mm | 400mm | 400mm |
| Swim Platform Portside | 300mm | 300mm | 400mm | 400mm | 400mm | 400mm |
| Under Step S/S Boarding Ladder (Stbd) | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Side Pockets x 2 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Battery Enclosure for 2 x Batteries w/1 Hatch | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Battery Isolator Recess with Hatch | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Electric Bow Mount Bracket | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Esky in Casting Deck | 85L | 85L | 85L | 110L | 110L | 110L |
| Casting Deck 1500mm (approx) w/2 Hatches | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Folding 2 Piece Centre Console OR | 600mm | 800mm | 800mm | 800mm | 800mm | 900mm |
| Fixed Console from 740mm with Epirb & Fire Extinguisher Recess | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Seat Box w/Double Flip Back Seat | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Aluminium Weld in Rod Holders | 4 | 4 | 4 | 4 | 4 | 4 |
| Aluminium Bait Table w/Storage Tray, Drink Holders & 3 x Rod Holders | Optional | ✓ | ✓ | ✓ | ✓ | ✓ |
| Cleats | 3 | 3 | 3 | 3 | 3 | 3 |
| Led Nav & Stern Lights | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Bilge & Bait Pumps | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 6 Gang Switch Panel | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Isolator Switch | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Hydraulic Steering Seastar | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Large Carpeted Anchor Well with Drain | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Carpeted Hardwood Floor | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Bow Sprit & Bow Roller | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Bow & Side Rails (Low) | 25mm | 32mm | 32mm | 32mm | 32mm | 32mm |
| Transom Rails x 3 | 25mm | 25mm | 25mm | 25mm | 25mm | 25mm |
| Raised Sheerline | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Painted White w/Stripes | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Reverse Chines | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Spray Chines Full Length | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Transducer Brackets | 2 | 2 | 2 | 2 | 2 | 2 |
| Transom Tie Down Lugs | 2 | 2 | 2 | 2 | 2 | 2 |
| Transom Deck Tread | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
Optional Extras
VHF Radio
Lowrance Sounder
Simrad Sounder
Aluminium Bait Table w/Storage Tray
Kill Tank Plumbed
Paint 2 Tone Upgrade
Deck Wash System
Aluminium Cockpit Floor w/Scuppers includes 4mm Upgraded Sides
Upgrade to 5mm Material Bottoms
