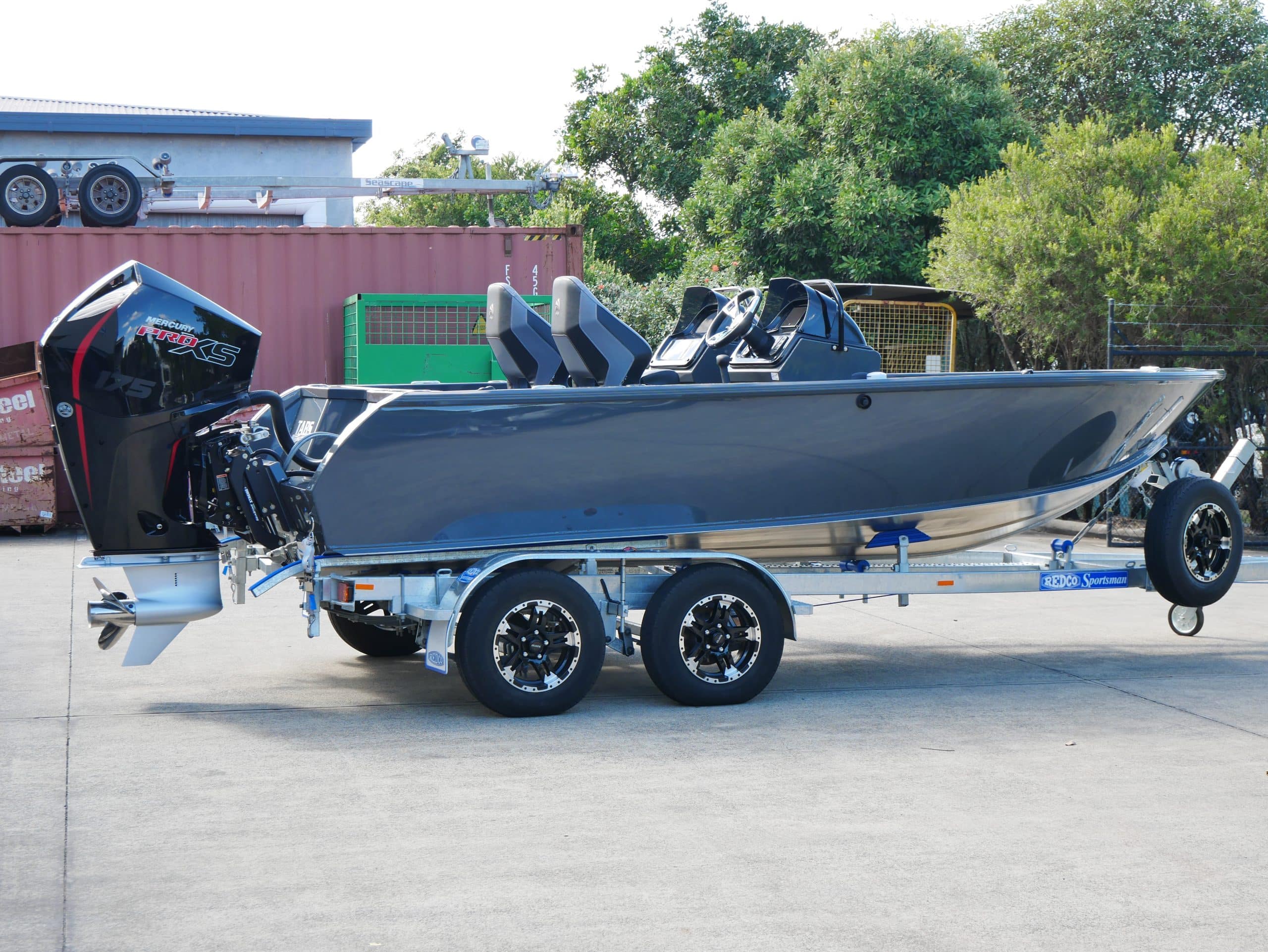

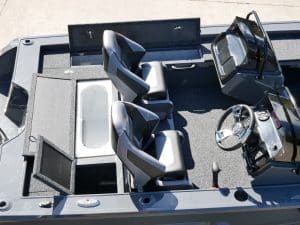

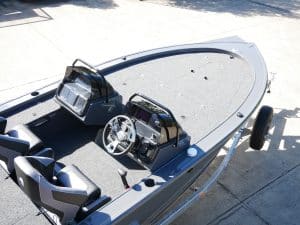

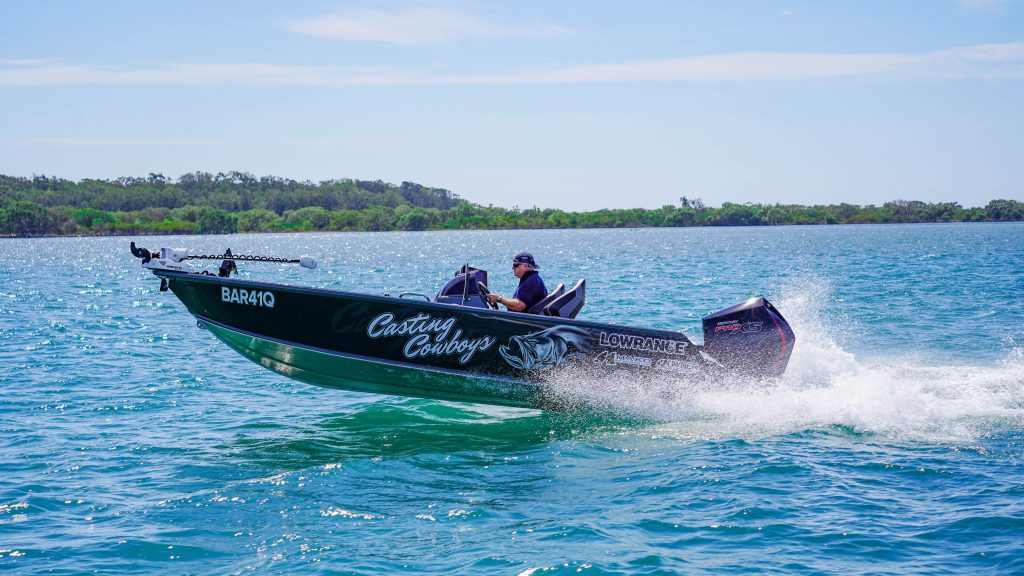

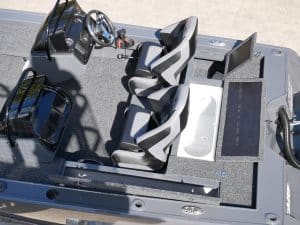

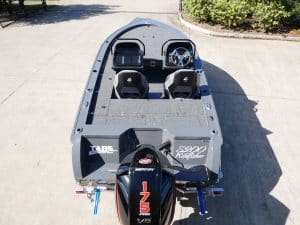

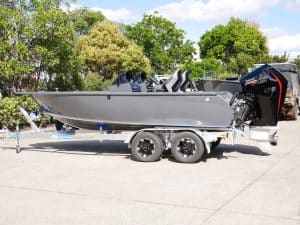

5200 Wildfisher – 175Hp
The Highlights
- Fully Strung Plate Boat
- Rated to 175Hp with 5mm 5083 Material Bottoms
- Electric Bow Mount Bracket

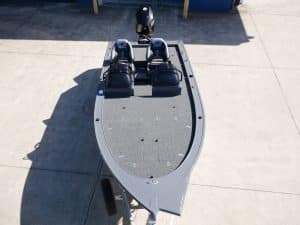

- Extended Full Height Front Casting Platform
- Full Sub Floors Throughout
- Side Console with Screen, Grab Rail, 2 x Drink Holders & Dash surround
- Weld in Rod Holders x 4
- Livewell Plumbed Rear Casting Platform
- Rod Locker Port Side

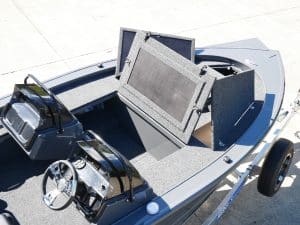

- Large Carpeted Anchor Well/Storage Hatch
Please note the images may include optional extras and/or modifications
View all features
Model Comparison
| 4900 | 5200 150Hp | 5200 175Hp | 5500 | 5800 | |
|---|---|---|---|---|---|
| Length Overall (m) | 4.90 | 5.20 | 5.20 | 5.50 | 5.80 |
| Beam (mm) (approx) | 2150 | 2150 | 2150 | 2150 | 2150 |
| Material Bottoms 5083 High Tensile | 4mm | 4mm | 5mm | 5mm | 5mm |
| Material Sides 5052 | 3mm | 3mm | 3mm | 3mm | 3mm |
| Fuel Tank Size (approx) | 110L | 110L | 110L | 150L | 150L |
| Freeboard (approx mm) | 410 | 410 | 410 | 410 | 410 |
| Deadrise (Deg) (Approx) | 12 | 12 | 12 | 12 | 12 |
| Transom | L/S | L/S | L/S | L/S | L/S |
| Min Horsepower (Hp) | 115 | 115 | 115 | 115 | 140 |
| Max Horsepower (Hp) | 150 | 150 | 175 | 200 | 225 |
| Hull Weight (approx Kg) | 585 | 650 | 670 | 710 | 750 |
| Number of People (up to) | 4 | 4 | 4 | 4 | 4 |
Standard Features
| 4900 | 5200 150Hp | 5200 175Hp | 5500 | 5800 | |
|---|---|---|---|---|---|
| Electric Bow Mount Bracket | ✓ | ✓ | ✓ | ✓ | ✓ |
| Livewell Plumbed with 2 x Spray Heads Rear Casting Platform | ✓ | ✓ | ✓ | ✓ | ✓ |
| Front Casting Platform (Extended Full Height) | ✓ | ✓ | ✓ | ✓ | ✓ |
| Rod Locker Port Side | ✓ | ✓ | ✓ | ✓ | ✓ |
| Locking Latches to Rod Locker & Large Hatch in Casting Deck | ✓ | ✓ | ✓ | ✓ | ✓ |
| Aluminium Weld in Rod Holders | 4 | 4 | 4 | 4 | 4 |
| Side Console w/Screen, Grab Rail, 2 x Drink Holders & Dash surround | ✓ | ✓ | ✓ | ✓ | ✓ |
| Led Nav & Stern Lights | ✓ | ✓ | ✓ | ✓ | ✓ |
| Bilge Pump | ✓ | ✓ | ✓ | ✓ | ✓ |
| 6 Gang Switch Panel | ✓ | ✓ | ✓ | ✓ | ✓ |
| Isolator Switch | ✓ | ✓ | ✓ | ✓ | ✓ |
| Seastar Hydraulic Steering | ✓ | ✓ | ✓ | ✓ | ✓ |
| Large Carpeted Anchor Well/Storage Hatch | ✓ | ✓ | ✓ | ✓ | ✓ |
| Carpeted Hardwood Floor | ✓ | ✓ | ✓ | ✓ | ✓ |
| Full Sub Floors Throughout | ✓ | ✓ | ✓ | ✓ | ✓ |
| Painted White | ✓ | ✓ | ✓ | ✓ | ✓ |
| Seat Positions | 2 | 2 | 2 | 2 | 2 |
| Seat Deluxe (Folding) | 2 | 2 | 2 | 2 | 2 |
| Drivers Seat Slide | ✓ | ✓ | ✓ | ✓ | ✓ |
| Spray Chines Full Length | ✓ | ✓ | ✓ | ✓ | ✓ |
| Transducer Brackets | 2 | 2 | 2 | 2 | 2 |
| Transom Tie Down Lugs | 2 | 2 | 2 | 2 | 2 |
| Transom Deck Tread | ✓ | ✓ | ✓ | ✓ | ✓ |
Optional Extras
Lowrance Sounder
Simrad Sounder

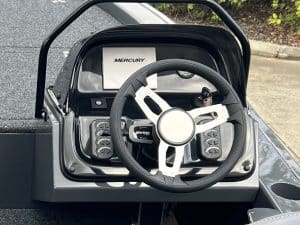

Pro Tap Switch

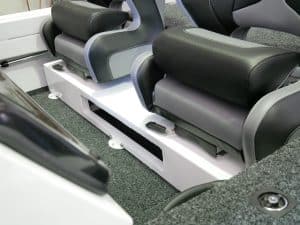

Seat Box

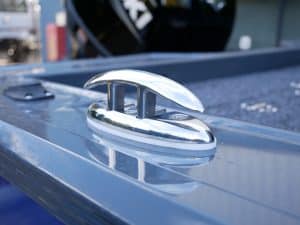

Pop up SS Cleat

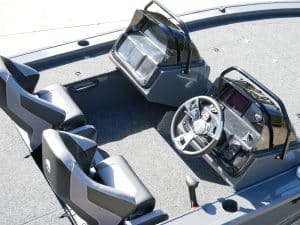

Passenger Fibreglass Console with Wrap Around Screen
Mako Premium Seats

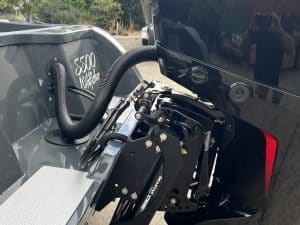

Jacking Plate

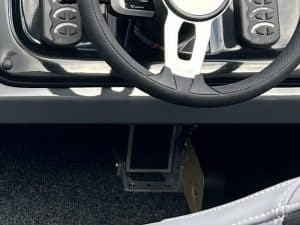

Hot Foot

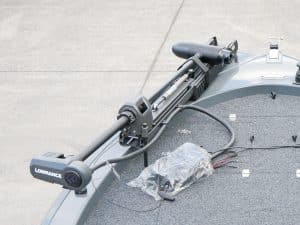

Lowrance Ghost

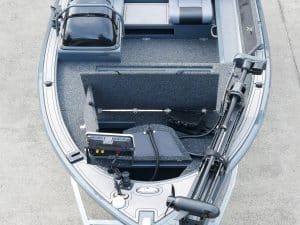

Forward Mount Sounder

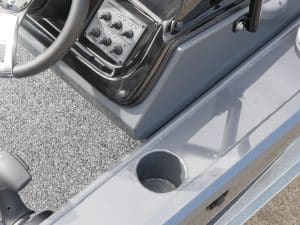

Ally Drink Holder on top deck

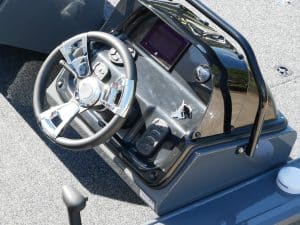

Fibreglass Console with Wrap around Screen

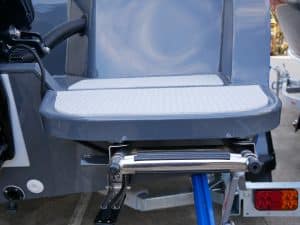

Swim Platform with under step SS Boarding Ladder

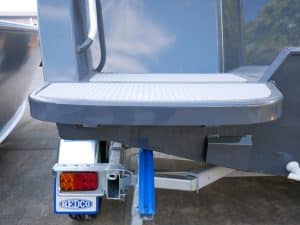

Swim Platform Portside

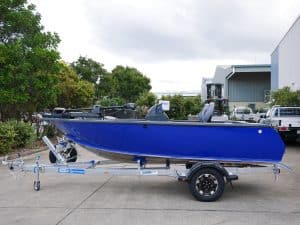

Paint Upgrade 2 Tone
