5200 Wildfisher – 150Hp

The Highlights

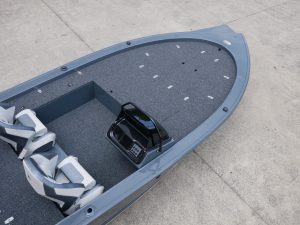

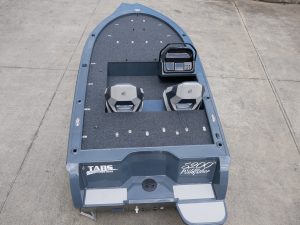

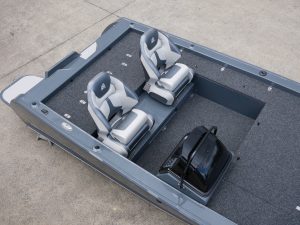

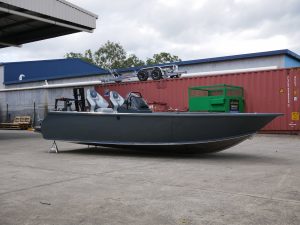

Please note the images may include optional extras and/or modifications.

	4900	5200 150Hp	5200 175Hp	5500	5800
Length Overall (m)	4.90	5.20	5.20	5.50	5.80
Beam (mm) (approx)	2150	2150	2150	2150	2150
Material Bottoms 5083 High Tensile	4mm	4mm	5mm	5mm	5mm
Material Sides 5052	3mm	3mm	3mm	3mm	3mm
Fuel Tank Size (approx)	110L	110L	110L	150L	150L
Freeboard (approx mm)	410	410	410	410	410
Deadrise (Deg) (Approx)	12	12	12	12	12
Transom	L/S	L/S	L/S	L/S	L/S
Min Horsepower (Hp)	115	115	115	115	140
Max Horsepower (Hp)	150	150	175	200	225
Hull Weight (approx Kg)	585	650	670	710	750
Number of People (up to)	4	4	4	4	4

	4900	5200 150Hp	5200 175Hp	5500	5800
Electric Bow Mount Bracket	✓	✓	✓	✓	✓
Livewell Plumbed with 2 x Spray Heads Rear Casting Platform	✓	✓	✓	✓	✓
Front Casting Platform (Extended Full Height)	✓	✓	✓	✓	✓
Rod Locker Port Side	✓	✓	✓	✓	✓
Locking Latches to Rod Locker & Large Hatch in Casting Deck	✓	✓	✓	✓	✓
Aluminium Weld in Rod Holders	4	4	4	4	4
Side Console w/Screen, Grab Rail, 2 x Drink Holders & Dash surround	✓	✓	✓	✓	✓
Led Nav & Stern Lights	✓	✓	✓	✓	✓
Bilge Pump	✓	✓	✓	✓	✓
6 Gang Switch Panel	✓	✓	✓	✓	✓
Isolator Switch	✓	✓	✓	✓	✓
Seastar Hydraulic Steering	✓	✓	✓	✓	✓
Large Carpeted Anchor Well/Storage Hatch	✓	✓	✓	✓	✓
Carpeted Hardwood Floor	✓	✓	✓	✓	✓
Full Sub Floors Throughout	✓	✓	✓	✓	✓
Painted White	✓	✓	✓	✓	✓
Seat Positions	2	2	2	2	2
Seat Deluxe (Folding)	2	2	2	2	2
Drivers Seat Slide	✓	✓	✓	✓	✓
Spray Chines Full Length	✓	✓	✓	✓	✓
Transducer Brackets	2	2	2	2	2
Transom Tie Down Lugs	2	2	2	2	2
Transom Deck Tread	✓	✓	✓	✓	✓
